our products
Plate Heat Exchanger

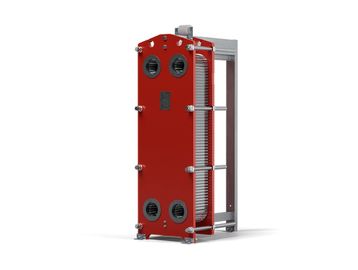

Gasketed PHE
Applications : Chemical, Thermal Power, Machine Tools & Mechanical, Pulp and Paper, Sugar and Distilleries, Breweries and others.
Technical Details
Range : DN25-DN600
Plates : 0.5mm/0.6mm/0.8mm & SS316/304/Titanium
Gaskets : NBR/EPDM/VITON

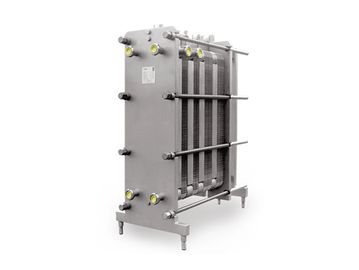

Sanitary Frame PHE
Applications : Dairy/food/beverage industry (regenerative pasteurization applications, milk chillers, CIP heaters), Industries with sanitary requirements.
Technical Details
Frame : Cladded
Plates : 0.5mm/0.6mm & SS316/304
Gaskets : NBR/EPDM (Food Grade)

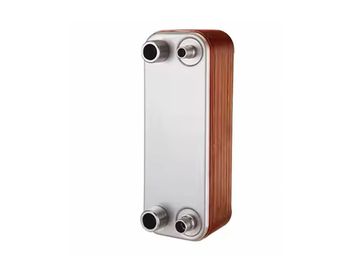

Brazed PHE
Application : Dairy/food/beverage industry, Refrigeration industry, Process cooling, Hydraulic oil cooling, Water cooling and heating.
Technical Details
Copper Brazing,Stainless steel
Temp Range : upto 230 degree C
Pressure : upto 40 bar
Pumps

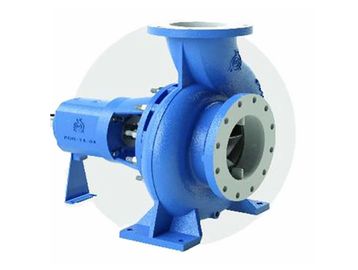

CPX Series
Standard Chemical Process
Applications : Oil Extraction, Chemical & Process Transfer, Cooling Tower, Hot Water, ETP, Textile, Cement Plants, Power and Steel and Pharmaceutical.
Technical Details
Pump Size D : DN 32 to DN 350
Head H : Up to 140 mtrs (460feet)
Capacity Q : Up to 900 m3/hr
Working Pressure : 22 bar Max.
Operating (Temp) : 500°C Max

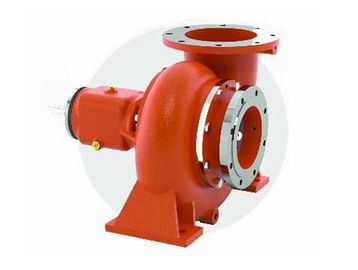

PSX Series
Pulp and Paper Stock Pump
Applications : Paper Mills, Paper Bleaching, Additives, Dyes Process, Acid, Alkaline, Corrosive slurries, Raw sewage, Slurry Handling, Oil Extraction and Waste.
Technical Details
Pump Size D : DN 65 to DN 400
Head H : Up to 80 mtrs (260 feet)
Capacity Q : Up to 2500 m3/hr
Working Pressure : 22 bar Max.
Operating (Temp) : 140°C Max.
Speed N : 1450 rpm

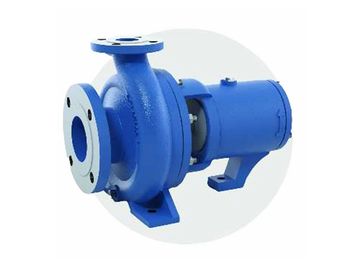

WPX Series
Centrifugal Water Pump
Application : Industrial water supply, Agriculture, Power plants, HVAC & Fire fighting system, Sprinkler systems, Cooling Tower, Food Processing and Textile.
Technical Details
Pump Size D : DN 32 to DN 150
Head H : Up to 100 mtrs (328feet)
Capacity Q : Up to 550 m3/hr
Working Pressure : 16 bar Max.
Operating (Temp) : Up to 100°C
Speed N : 2900/1450 rpm

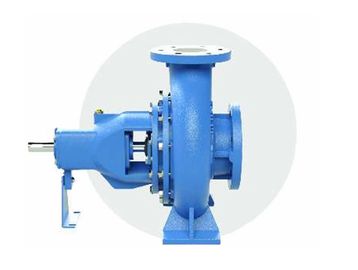

ACH Series
ANSI Chemical Process
Applications : Acids, Brine, Fertilizer, Solvents, Textile, breweries, Jet dyeing, Refineries, Steel, Oil & gas, Cellulose, Petrochemicals and lime mud slurry.
Technical Details
Pump Size D : DN 25 to DN 100
Head H : Up to 180 mtrs (590feet)
Capacity Q : Up to 600 m3/hr
Working Pressure : 24 bar Max.
Operating (Temp) : 200 °C Max.
Speed N : 960/1450/3500 rpm

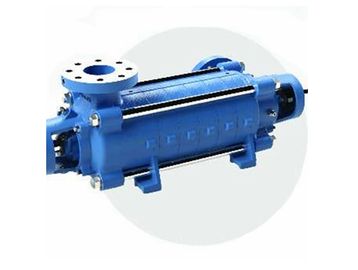

Multi Stage Pump
Multi Stage Pump
Applications : Boiler feed, Pressure Booster, HVAC, Irrigation, Fire fighting, Cooling tower, Power industry utilities, General Water Supply and Water treatment plants.
Technical Details
Pump Size D : DN 80 to DN 100
Head H : Upto 540 mtrs (1771.7 ft)
Capacity Q : Up to 70 m3/hr
Working Pressure : 54 bar Max.
Operating (Temp) : 180 °C Max.
Speed N : 2900/1450 rpm

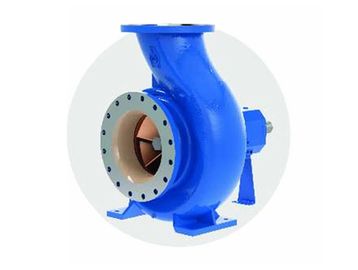

KMF Series
Mixed Flow Pump
Applications : General Water Supply, Power industry utilities, Chemical Plant, Power station, Sewage Disposal, Mining and steel plant, Agricultural irrigation and Petrochemical Industry.
Technical Details
Pump Size D : DN 200 to DN 450
Head H : Up to 50 mtrs (164 feet)
Capacity Q : Up to 3500 m3/hr
Working Pressure : 16 bar Max.
Operating (Temp) : 100 °C Max.
Speed N : 960/1450/1750 rpm

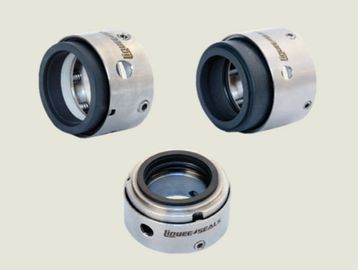

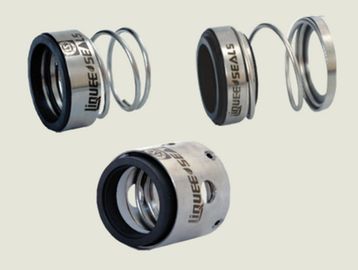

Mechanical Seals
Single Spring Versions
LS-201, LS-301, LS-205 and more.
Multiple Spring Versions
LS-101, LS-101-B, LS-501 and more.
Agitator Seal Versions
LS-900, LS-101B / LS-101B-AG, LS-900/OS and more.
SERVICE SOLUTIONS
At Harshita Enterprises, We have dedicated service engineers who understand the criticality of process, applications and accordingly offers best solutions to our customers.
Parts and services of all make PHE
Danfoss, Alfa Laval, Tranter, Kelvion and others
Plates Solution
MOC : AISI 304, AISI 316, AISI 316L, SMO254, Titanium and others.
Thickness : 0.5mm, 0.6mm, 0.8mm and 1mm
Gasket's Solution
MOC : Ring Gasket, Channel Plate Gasket, End Ring Gasket and End Channel Plate Gasket.
Type : NBR, NBR-HT, EPDM, EPDM-HT, VITON(A/B/G) and CHLOROPRENE. Frame Solution
Tie Rod and Bolts (MOC : SA193, IS1367 ) and others.
All make pumps genuine spare parts and mechanical seals available
List of pumps Spares parts
Casing MOC - CI/SS-202/ 304/, 316,317L, 410, CF8.
Stuffing Box MOC - CI SS.
Wear Plate, Wire Ring, Sleeve, Impeller
Bearings MOC - CI, SS 202,304,316L,317,410, CF8 ,CF 8M etc.
